NEET 2018, Physics Q2: Semiconductors, p-n Junction Diode and Applications

NEET2018Paper 2018Physics

Learn this concept: Semiconductors, p-n Junction Diode and Applications →

Q.

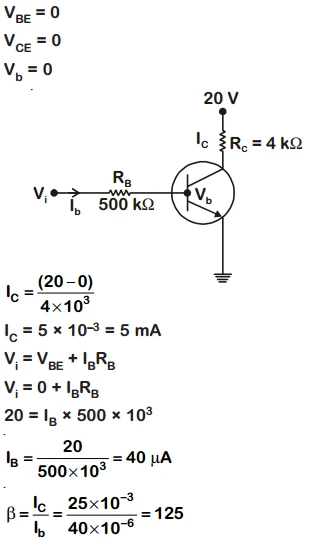

In the circuit shown in the figure, the input voltage Vi is 20 V, VBE = 0 and VCE = 0. The values of IB , IC and   are given by

  1. A

    IB = 40 , IC = 10 mA, = 250

  2. B

    IB = 20 , IC = 5 mA, = 250

  3. C

    IB = 25 , IC = 5 mA, = 200

  4. D

    IB = 40 , IC = 5 mA, = 125

Solution
Given
IdeaWith the emitter grounded and , the base and the collector both sit at 0 V. Ohm's law on each resistor gives the currents, and .

Steps

  1. Base loop equation

    Write the loop through the base resistor, with .

  2. Base current

    Solve for .

  3. Collector current

    Collector loop, with .

    Key stepWith the whole 20 V drops across .
  4. Current gain

    Current gain from the two currents.

AnswerOption D: , ,
TrapStudents often slip a factor of 2 in and write instead of . With the correct this gives , Option B.
