NEET 2024, Physics Q20: Semiconductors, p-n Junction Diode and Applications

NEET2024Physics

Learn this concept: Semiconductors, p-n Junction Diode and Applications →

Q.

The output of the given logic gate is similar to the output of an/a:

  1. A

    OR gate

  2. B

    AND gate

  3. C

    NAND gate

  4. D

    NOR gate

Solution
Given
  • Input feeds a NAND gate with both its inputs joined
  • Input feeds a NOR gate with both its inputs joined
  • The two outputs feed a final NOR gate, whose output is
IdeaA NAND or NOR gate with its inputs tied together acts as a NOT gate. De Morgan's law then simplifies the final NOR.

Steps

  1. NAND with both inputs A

    First NAND gate, both inputs :

  2. NOR with both inputs B

    First NOR gate, both inputs :

  3. Output of the final NOR

    The final gate is a NOR (it has the bubble at its output):

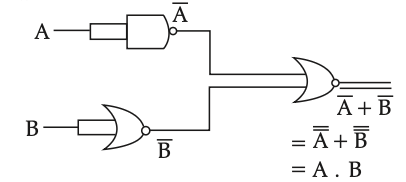

    Circuit with intermediate outputs A-bar, B-bar and final result A·B
  4. Apply De Morgan's law

    By De Morgan's law:

    Key stepBy De Morgan's law the final NOR of and becomes .
  5. Check with the truth table

    only when . For example, gives inputs to the NOR, so . gives inputs , so . This is the AND function.

AnswerOption B: , an AND gate
TrapMissing the bubble at the output of the last gate and treating it as an OR gate gives . That is the NAND function, Option C.
