NEET 2022, Physics Q39: Semiconductors, p-n Junction Diode and Applications

NEET2022Physics

Learn this concept: Semiconductors, p-n Junction Diode and Applications →

Q.

The truth table for the given logic circuit is :

  1. A

    ABC
    001
    010
    100
    111

  2. B

    ABC
    001
    010
    101
    110

  3. C

    ABC
    000
    011
    100
    111

  4. D

    ABC
    000
    011
    101
    111

Solution
Given
  • Upper NAND gate inputs: and
  • Lower NAND gate inputs: (from the NOT gate) and
  • Both outputs feed an AND gate whose output is
IdeaWrite each gate output in Boolean form, then simplify with De Morgan's theorem.

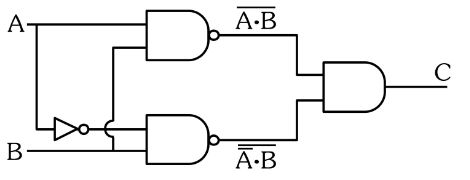

Circuit with gate outputs labelled $\overline{A\cdot B}$ and $\overline{\bar{A}\cdot B}$

Steps

  1. Upper NAND output

    The upper NAND gate takes and .

  2. Lower NAND output

    The lower NAND gate takes and .

  3. AND gate output

    The AND gate combines and .

  4. Simplify with De Morgan

    Apply De Morgan's theorem.

    Key stepSince , the output depends on alone: .
  5. Build the truth table

    and , whatever is. So the rows give for .

AnswerOption B:
Faster wayThe two NAND gates share input and receive and respectively. If , both NAND outputs are 1, so . If , exactly one of and is 1, so one NAND output is 0 and ; hence , which is only Option B.
TrapReading the output gate as a NAND gate, or dropping the overbar when applying De Morgan's theorem, gives . That yields the column , which is Option C.
