JEE Main 2026 Apr 8 Shift 2, Physics Q20: Logic Gates

JEE Main2026Apr 8, Shift 2Physics

Learn this concept: Logic Gates →

Q.

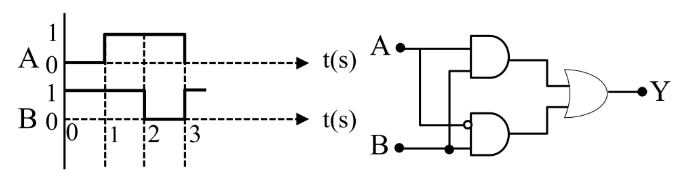

The output for the given inputs and to the circuit is :

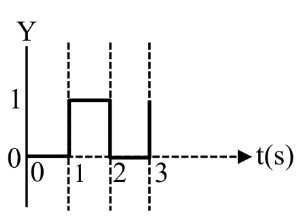

  1. A

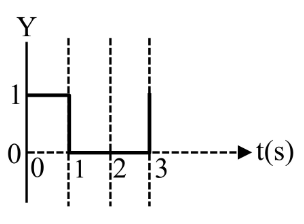

  2. B

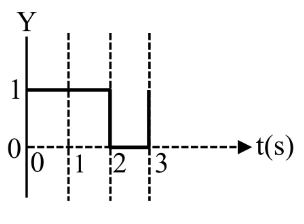

  3. C

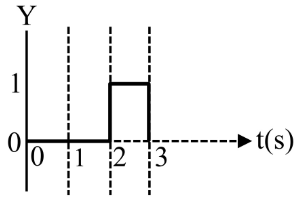

  4. D
Solution
Given
  • = 0 for 0 to 1 s and 1 for 1 to 3 s
  • = 1 for 0 to 2 s, 0 for 2 to 3 s, and 1 after 3 s
  • Upper AND gate takes and
  • Lower AND gate takes through an inverting bubble, together with
  • Both outputs feed an OR gate
IdeaWrite the Boolean expression for and simplify it. Then read directly from the input waveforms.

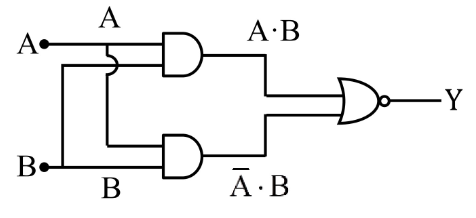

Circuit with gate outputs A·B and Ā·B labelled

Steps

  1. Upper AND gate output

    The upper AND gate takes and , so its output is:

  2. Lower AND gate output

    The bubble inverts , so the output is .

  3. Simplify the OR gate output

    The OR gate adds the two outputs and simplifies.

    Key stepSince , the circuit reduces to .
  4. Read Y from the waveform

    So copies . It is 1 from 0 to 2 s, 0 from 2 to 3 s, and rises to 1 at 3 s. Check at 0 to 1 s: , so and . Check at 2 to 3 s: , so both AND outputs are 0 and .

AnswerOption B: , high from 0 to 2 s and low from 2 to 3 s
Faster wayTest two intervals and eliminate options. From 0 to 1 s, and make the lower gate output 1, so , which rules out C and D. From 1 to 2 s, make the upper gate output 1, so , which rules out A and leaves B.
TrapOverlooking the inverting bubble on the lower AND gate treats both gates as , so : high only from 1 to 2 s, which is the waveform of Option D.
