Q.

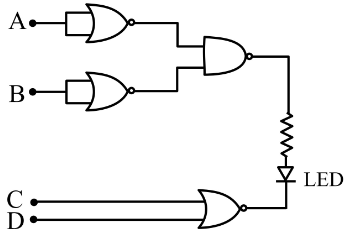

Find the correct combination of A, B, C and D inputs which can cause the LED to glow.

  1. A

    0100

  2. B

    0011

  3. C

    1000

  4. D

    1101

Solution
Given

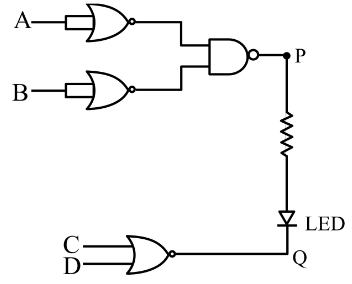

  • A and B each pass through a NOR gate with its inputs tied together
  • These outputs feed a NAND gate whose output P drives the LED anode through a resistor
  • C and D feed a NOR gate whose output Q is at the LED cathode
  • Options (ABCD): 0100, 0011, 1000, 1101
IdeaThe LED glows only when it is forward biased, so we need anode P = 1 and cathode Q = 0.

Steps

  1. Tied NOR gates act as NOT

    A NOR gate with tied inputs acts as a NOT gate. Likewise, the B gate gives .

  2. NAND output gives an OR

    The NAND gate then gives P (De Morgan). So needs at least one of A, B to be 1.

    Key stepTwo inverters feeding a NAND give an OR of A and B.
  3. Bottom NOR must output 0

    The bottom gate gives Q. So needs at least one of C, D to be 1.

  4. Check each option

    Option A, 0100: , . No glow.
    Option B, 0011: . No glow.
    Option C, 1000: , . No glow.
    Option D, 1101: , . The LED is forward biased and glows.

AnswerOption D: 1101
TrapMissing the bubbles on the two input NOR gates and reading them as buffers gives . Then 0011 gives and , so the LED seems to glow, which picks Option B.
