JEE Main 2025 Jan 28 Shift 2, Physics Q15: Semiconductors, p-n Junction Diode and Applications

JEE Main2025Jan 28, Shift 2Physics

Learn this concept: Semiconductors, p-n Junction Diode and Applications →

Q.

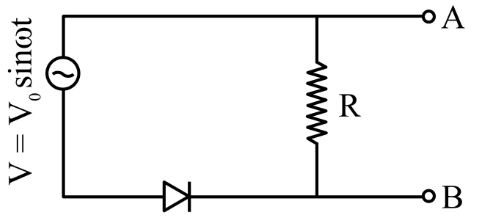

In the circuit shown here, assuming threshold voltage of diode is negligibly small, then voltage is correctly represented by :

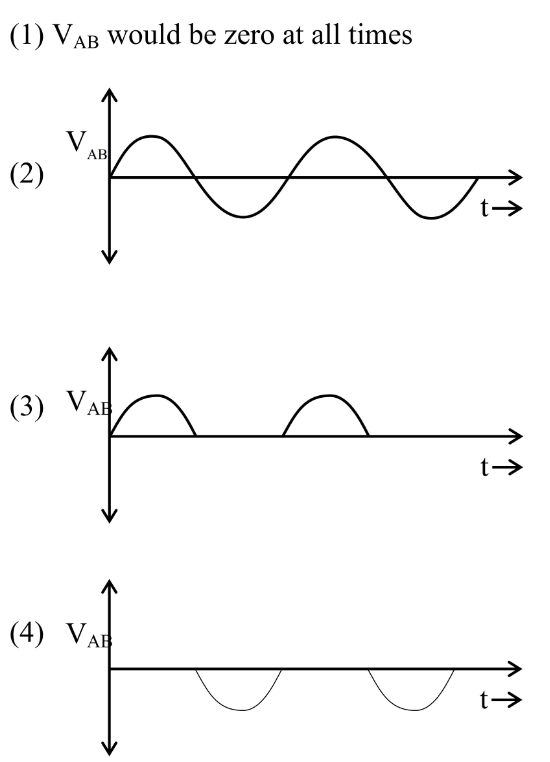

  1. A

    1

  2. B

    2

  3. C

    3

  4. D

    4

Solution
Given
  • Source , an ideal diode and resistor , all in one series loop
  • and are the two ends of , so is the voltage across
  • Threshold voltage of the diode is negligibly small
IdeaAn ideal diode passes current only when forward-biased. With no current, there is no drop across . With current, the full source voltage appears across .

Steps

  1. Direction of the diode

    The diode sits in the bottom wire. Its anode faces the source and its cathode faces , so it lets current flow only from the source's lower terminal towards .

  2. Positive half-cycle: diode blocks

    Positive half-cycle (, upper terminal positive): current would have to run down through from to and then back through the diode towards the source. That is the diode's blocked direction, so it is reverse-biased. Hence and

  3. Negative half-cycle: diode conducts

    Negative half-cycle (, lower terminal positive): current leaves the lower terminal and passes forward through the diode. It then flows up through from to . The diode acts as a plain wire, so the whole source voltage falls across .

  4. Sign of when conducting

    Current enters at , so is at the higher potential. Therefore

    Key stepCurrent enters at , not at , so is negative during the conducting half.
  5. Shape over one cycle

    Over each cycle, is zero in the positive half and follows the negative half-sine in the negative half. Only the negative humps appear, which is graph 4.

AnswerOption D: shows only the negative half-cycles (graph 4)
TrapAssuming the diode passes the positive half-cycle, as in the familiar half-wave rectifier, without checking that its arrow points away from the source towards , gives only positive humps, which is graph 3, Option C.
