NEET 2025, Physics Q6: Wheatstone Bridge, Ammeter, Voltmeter And Potentiometer

NEET2025Physics

Learn this concept: Wheatstone Bridge, Ammeter, Voltmeter And Potentiometer →

Q.

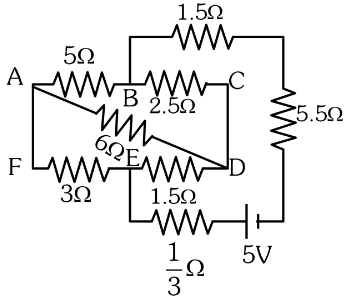

The current passing through the battery in the given circuit, is:

  1. A

    2.0 A

  2. B

    0.5 A

  3. C

    2.5 A

  4. D

    1.5 A

Solution
Given
  • Battery: 5 V
  • Resistors in the loop: , and in series with the network between B and E
  • A–F and C–D are plain wires
  • Network resistors: 5 Ω, 2.5 Ω, 6 Ω, 3 Ω, 1.5 Ω
IdeaThe network between B and E is a Wheatstone bridge. If it is balanced, its diagonal carries no current and can be removed.

Steps

  1. Identify the bridge arms

    Since A–F is a wire, A connects to E through the 3 Ω. Since C–D is a wire, B connects to D through the 2.5 Ω. The bridge arms are: B–A = 5 Ω, A–E = 3 Ω, B–D = 2.5 Ω, D–E = 1.5 Ω, with the 6 Ω between A and D as the diagonal.

    Key stepSince A–F and C–D are wires, the network is a Wheatstone bridge with the 6 Ω as its diagonal.
  2. Check the bridge balance

    Balance check: the ratios are equal, so the bridge is balanced and the 6 Ω carries no current.

  3. Resistance between B and E

    Remove the 6 Ω. The two arms are and in parallel.

  4. Total resistance in the loop

    Add the series resistances in the loop.

  5. Current through the battery

    Apply Ohm's law to the whole loop.

AnswerOption B: 0.5 A
TrapMissing that A–F and C–D are wires, so the bridge arms are misidentified and the wrong resistor is taken as the diagonal.
