JEE Main 2026 Jan 28 Shift 2, Physics Q6: Wheatstone Bridge, Ammeter, Voltmeter And Potentiometer

JEE Main2026Jan 28, Shift 2Physics

Learn this concept: Wheatstone Bridge, Ammeter, Voltmeter And Potentiometer →

Q.

A wheatstone bridge is initially at room temperature and all arms of the bridge have same value of resistances . When resistance is heated to some temperature, its resistance value has gone up by 10%. The potential difference (after is heated) is ____ V.

  1. A

    1.05

  2. B

    0

  3. C

    0.95

  4. D

    2

Solution
Given
  • Originally
  • After heating,
  • A 40 V cell is connected between the top and bottom junctions
IdeaEach side of the bridge (– and –) is a potential divider across the full 40 V. Find and separately and subtract.

Steps

  1. Fix the reference potentials

    Take the top junction (the positive terminal) at 40 V and the bottom junction at 0 V.

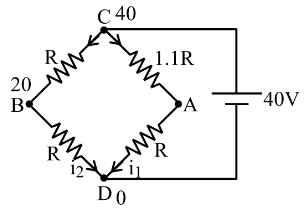

    Bridge with potentials 40 V, 20 V and 0 V marked, and currents
  2. Potential at a (left divider)

    (top) and (bottom) are equal and in series across 40 V. The potential at is the drop across :

  3. Potential at b (right divider)

    (top) and (bottom) are in series, with total . The potential at is the drop across :

  4. Subtract to get the difference

    Difference of the two potentials:

AnswerOption C: 0.95 V
TrapStudents often assume the current in the – branch stays at after heating. The extra then appears to drop an extra V, giving V and V, which is Option D.
