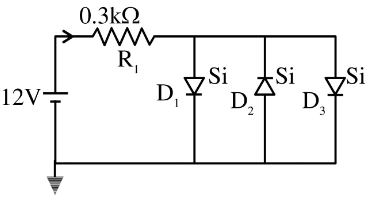

Assuming in forward bias condition there is a voltage drop of 0.7 V across a silicon diode, the current through diode in the circuit is ______ mA. (Assume all diodes in the given circuit are identical)

  1. A

    20.15

  2. B

    11.7

  3. C

    17.6

  4. D

    18.8

Solution
Given
  • Supply
  • Series resistor
  • Three identical Si diodes in parallel, each dropping when forward biased
IdeaOnly forward biased diodes conduct. Identical conducting diodes in parallel share the total current equally.

Steps

  1. Find which diodes conduct

    The top rail is at the higher potential. and point from the top rail to the bottom rail, so they are forward biased.

  2. Spot the reverse biased diode

    points the other way, so it is reverse biased.

    Key step carries no current, so the current splits between only two diodes.
  3. Apply KVL around the loop

    The parallel rails sit apart. Applying KVL around the loop:

  4. Total current

    Solving for the total current:

  5. Share current between D1 and D3

    and are identical, so they share this current equally.

AnswerOption D: 18.8 mA
TrapA student who subtracts for each of and , as if the two diodes were in series, gets . Halving this gives about , which is Option C.
