JEE Advanced 2025 Paper 1, Physics Section 1 Q4: Measurements

JEE Advanced2025Paper 1Physics Section 1

Learn this concept: Measurements →

Q.

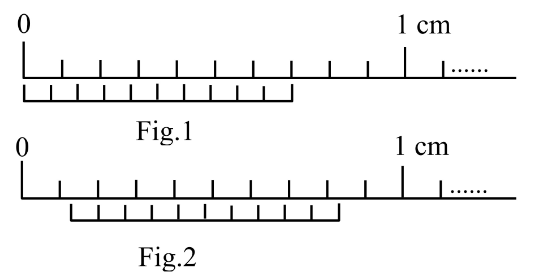

Figure 1 shows the configuration of main scale and Vernier scale before measurement. Fig. 2 shows the configuration corresponding to the measurement of diameter of a tube. The measured value of is:

  1. A

    0.12 cm

  2. B

    0.11 cm

  3. C

    0.13 cm

  4. D

    0.14 cm

Solution
Given
  • 10 main scale divisions make 1 cm, so 1 MSD = 1 mm
  • In Fig. 1 the two zeros coincide and the 10 Vernier divisions span 7 MSD
IdeaThe least count is 1 MSD minus 1 VSD. The reading is the main-scale mark just behind the Vernier zero plus (coinciding Vernier division) times the least count.

Steps

  1. Vernier division from Fig. 1

    From Fig. 1, 10 VSD equal 7 MSD, which is 7 mm.

  2. Least count

    The least count is 1 MSD minus 1 VSD.

  3. Zero error is nil

    In Fig. 1 the Vernier zero sits exactly on the main-scale zero, so the zero error is nil.

  4. Read Fig. 2

    From Fig. 2: the Vernier zero lies between the 1 mm and 2 mm marks, so the main-scale reading is 1 mm. The 1st Vernier division lines up with the 2 mm mark, so . As a check, the Vernier zero then sits at mm.

  5. Diameter of the tube

    Add the main-scale reading and the Vernier part.

AnswerOption C: 0.13 cm
TrapAssuming the usual least count of 0.1 mm instead of working it out from Fig. 1 gives mm cm, Option B. Here 10 VSD span only 7 MSD, so the least count is 0.3 mm, not 0.1 mm.
